Breaking the Memory Wall: Why AI Training and Inference Are Slow—and How to Scale

As enterprise adoption of large language models shifts from experimental prototypes to production environments, engineering leaders face a sharp operational reality: AI system performance does not scale linearly with hardware expenditure. Addressing the stark contrast in inference vs training speed requires confronting the primary bottleneck of modern deep learning infrastructure: the LLM memory bandwidth bottleneck. While model training demands immense mathematical compute across GPU clusters, real-time token generation during inference is constrained by how fast data can move from memory to processing cores.

LLM Execution Workload] --> B[Training Phase
Inference Phase
B
Matrix-Matrix Operations
COMPUTE-BOUND: High Arithmetic Intensity
Prefill Phase: Prompt Processing
COMPUTE-BOUND: Parallel GEMM
Decode Phase: Token Generation
MEMORY-BANDWIDTH-BOUND: Serial GEMV

The Phase Asymmetry of AI Workloads

Understanding why artificial intelligence systems stall requires analyzing the mathematical mechanics of deep learning at the hardware level. The computational workload splits into two distinct profiles based on arithmetic intensity—the ratio of floating-point operations (FLOPs) performed per byte of data transferred from high-bandwidth memory (HBM):

$$\text{Arithmetic Intensity} = \frac{\text{Total FLOPs}}{\text{Total Bytes Transferred}}$$

During training, accelerators process massive batches of token embeddings simultaneously using matrix-matrix multiplication (GEMM). Because loaded parameter weights are reused across thousands of parallel inputs, arithmetic intensity remains high, keeping GPU tensor cores saturated near peak computational throughput.

Conversely, inference operates in two sequential phases:

1. Prefill Phase: The model ingests the full input prompt concurrently via parallel matrix-matrix operations. Like training, this phase exhibits high arithmetic intensity and is strictly compute-bound.
2. Decode Phase: The model generates output text auto-regressively, one token at a time. Each step requires multiplying a single vector against the entire parameter volume of the model (GEMV). At a request batch size of one, millions of weight parameters must be transferred from HBM to compute caches to execute a minimal number of operations per weight, leaving processing cores idle while waiting for data.

# Arithmetic intensity contrast between execution phases
def arithmetic_intensity(batch_size: int, seq_len: int, hidden_dim: int):
 # Prefill / Training: High data reuse across batch and sequence
 mm_intensity = (2 * batch_size * seq_len * (hidden_dim ** 2)) / (2 * (hidden_dim ** 2) + 2 * batch_size * seq_len * hidden_dim)
 # Single-request Decode: Minimal data reuse per token
 mv_intensity = (2 * 1 * 1 * (hidden_dim ** 2)) / (2 * (hidden_dim ** 2) + 2 * 1 * 1 * hidden_dim)
 return {"compute_bound_prefill": mm_intensity, "memory_bound_decode": mv_intensity}

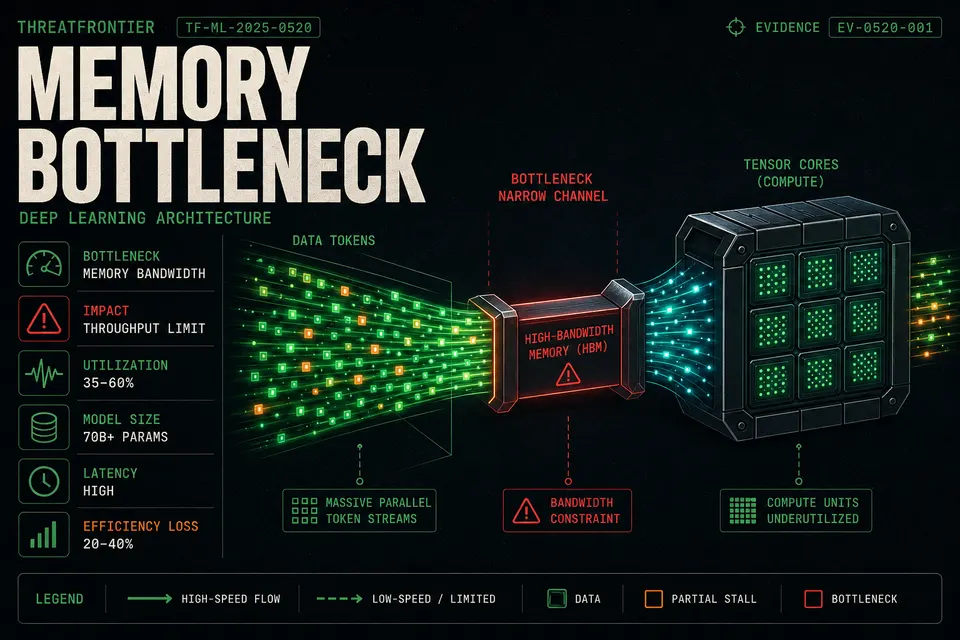

The Memory Wall and Hardware Scaling Limits

The auto-regressive generation bottleneck is reinforced by a structural hardware divergence known as the memory wall. Over the past two decades, peak accelerator compute performance has expanded by 3.0× every two years, while DRAM memory bandwidth has grown by only 1.6× and inter-processor interconnect bandwidth by just 1.4× over the same interval. Cumulative hardware scaling over twenty years shows theoretical peak FLOPS surging roughly 60,000×, whereas DRAM bandwidth has increased by barely 100×.

This widening gap creates severe friction at every level of compute hierarchy:

• On-Chip SRAM to HBM: Data movement across memory channels consumes significantly more latency and power than arithmetic execution.
• Inter-Node Scaling Boundaries: In large-scale training clusters, distributing work across thousands of GPUs trades single-chip memory bounds for communication bottlenecks. While intra-node links like NVLink deliver terabit-scale throughput, inter-node traffic over InfiniBand or Ethernet experiences severe bandwidth drops during collective all-reduce gradient synchronization, lowering Model FLOPs Utilization (MFU).

Precision Formats and KV-Cache Inflation

Inference efficiency is further compromised by the memory footprint of historic context. To prevent recomputing attention states for prior tokens during auto-regressive generation, inference engines maintain a Key-Value (KV) cache in dynamic memory.

The memory footprint of the KV-cache grows linearly with sequence length, model dimensions, and concurrent batch sizes:

$$\text{KV Cache Size} = 2 \times \text{Layers} \times \text{Heads} \times \text{Head Dim} \times \text{Sequence Length} \times \text{Batch Size} \times \text{Bytes per Element}$$

For a 70-billion-parameter model handling a 128,000-token prompt, the KV-cache alone consumes dozens of gigabytes per request, crowding accelerator memory and intensifying bandwidth starvation.

Numerical precision directly controls memory transfer overhead. Shifting from 32-bit single precision (FP32) to 16-bit floating-point (FP16/BF16) cuts memory transfers by 50%. Transitioning further to 8-bit (FP8/INT8) or 4-bit (AWQ/GPTQ) formats reduces weight data movement by up to 75%, effectively multiplying decoding throughput without structural model alterations.

Architectural Mitigations for Production Serving

To overcome memory-bandwidth limits and restore compute efficiency, modern deployment frameworks combine algorithmic innovations with specialized memory management.

Modern optimizations target specific stages of data movement:

• SRAM Tiling via FlashAttention: Standard attention materializes large $N \times N$ matrices in high-latency HBM. FlashAttention divides input tensors into smaller blocks, loading them into fast on-chip SRAM to compute incremental softmax reductions before writing final outputs back to memory.
• Dynamic Memory Paging via PagedAttention: Traditional allocators pre-allocate contiguous HBM blocks for maximum context lengths, wasting 60% to 80% of memory due to fragmentation. PagedAttention partitions the KV-cache into fixed-size physical pages, allowing non-contiguous allocation that maximizes batch density.
• Parallel Verification via Speculative Decoding: Speculative decoding pairs a small, fast draft model with a large target model. The draft model generates candidate tokens sequentially, which the target model verifies in a single parallel, compute-bound matrix-matrix forward pass, converting serial memory-bound steps into accelerated parallel compute.

Draft Model: [t1] -> [t2] -> [t3] -> [t4] (Serial Memory-Bound Generation)
Target Model: Verify([t1, t2, t3, t4]) (Parallel Compute-Bound Verification)

Strategic Infrastructure Design

Maximizing performance and cost efficiency requires matching infrastructure architectures to operational workloads:

• Cluster Architecture for Model Training: Enterprise teams should prioritize interconnect bandwidth and high-speed network fabrics over raw GPU counts to minimize cross-node synchronization latency.
• High-Concurrency API Deployment: Serving platforms benefit most from memory capacity techniques—such as PagedAttention, continuous batching, and FP8 precision—that maximize request concurrency.
• Low-Latency Agentic Systems: Interactive workloads like code generation and multi-step reasoning benefit most from combining 4-bit AWQ quantization with speculative decoding to accelerate single-stream token generation speeds.
